  Home > Cup-Lock Scaffold > Face Braces & Diagonal Braces >

  8' x 2.0M Swivel Clamp Brace

High-Strength Steel!

Our Price: $35.99


Product Code: 804008

Description Technical Specs Extended Information

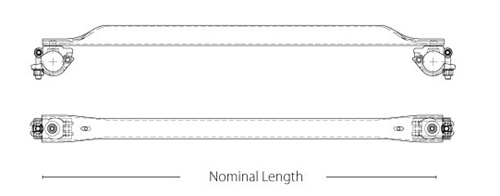

Brace is measured from center of Standard-to-center of Standard
STEEL TUBE:
Diameter: 1.90" OD
Wall Thickness: 0.125"
Yield Strength: 50 ksi
Tensile Strength: 65 ksi
Elongation: 30%
Finish: Hot-Dipped Galvanized

CLAMP:
Forged High-Strength Steel
Finish: Hot-Dipped Galvanized
Features
  • Brace is measured from center of Standard-to-center of Standard

  • STEEL TUBE:

  • Diameter: 1.90" OD

  • Wall Thickness: 0.125"

  • Yield Strength: 50 ksi

  • Tensile Strength: 65 ksi

  • Elongation: 30%

  • Finish: Hot-Dipped Galvanized


  • CLAMP:

  • Forged High-Strength Steel

  • Finish: Hot-Dipped Galvanized
